251 350W Wattage Aluminum Alloy Frame 48V Rear Drive E Bike
Conversion Kit For Casette And Rotate Motor
48V Rear Drive E Bike Conversion Kit For Casette And Rotate Motor
Advantage of our e bike conversion kit.
1. 48V strong power, 350W motor.
2. Rear motor more stable and safety(casette motor/rotate motor both
can be chose).
3. LCD SW900 displayer optional.
4. 48V 8AH/12AH high-capacity li-ion kettle battery. long range.
5. Price very competitive.
E Bike Conversion Kit has 8 different configuration
1. Model: TH-004-1(48V 350W rear rotation motor without displayer)
SPECIFICATION FOR TH-004-1 |
| Motor | 48V 350W rear rotation motor | Controller | 48V 14A |
| Motor axle length | 135 MM(bike rear fork length 135MM) | Battery | 48V 8Ah kettle battery |
| Throttle | Thumb throttle with battery indicator | Distance/charge | Around 30KM |
| Pedal assist | 15 magnet | Brake Machine | Brake outage sensor |
| Charger standard | EU/USA standard(optional) | Controller box | Include |
2. Model: TH-004-2(48V 350W rear rotation motor with SW 900 LCD
displayer)
SPECIFICATION FOR TH-004-2 |
| Motor | 48V 350W rear rotation motor | Controller | 48V 14A |
| Motor axle length | 135 MM(bike rear fork length 135MM) | Battery | 48V 8Ah kettle battery |
| Throttle | Thumb throttle | Distance/charge | Around 30KM |
| Pedal assist | 15 magnet | Brake Machine | Brake outage sensor |
| Charger standard | EU/USA standard(optional) | Displayer | LCD SW 900 (big screen) |

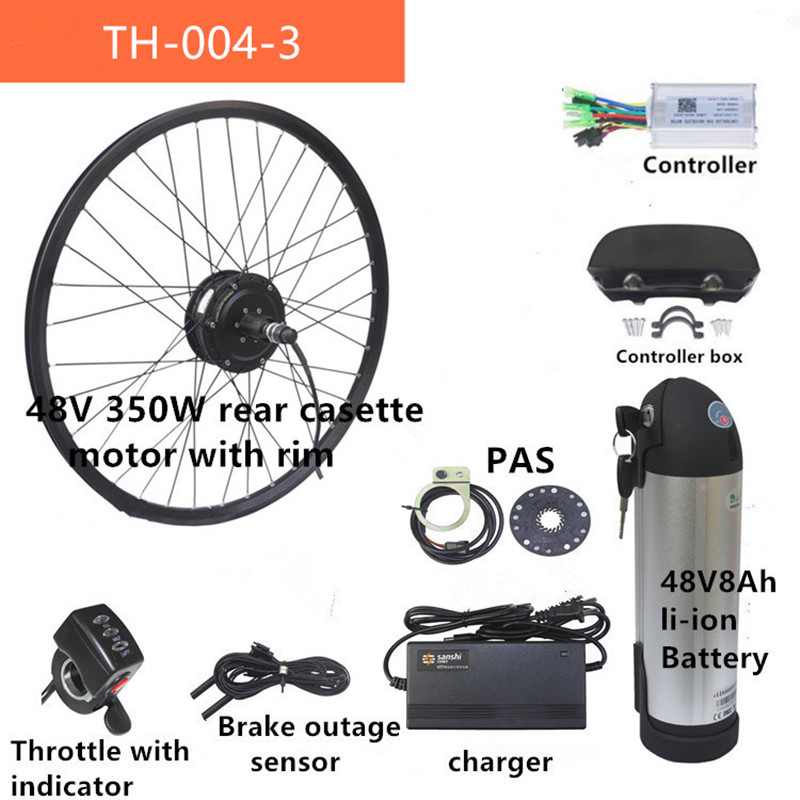

3. Model: TH-004-3(48V 350W rear casette motor without displayer)
SPECIFICATION FOR TH-004-3 |
| Motor | 48V 350W rear casette motor | Controller | 48V 14A |
| Motor axle length | 135 MM(bike rear fork length 135MM) | Battery | 48V 8Ah kettle battery |
| Throttle | Thumb throttle with battery indicator | Distance/charge | Around 30KM |
| Pedal assist | 15 magnet | Brake Machine | Brake outage sensor |
| Charger standard | EU/USA standard(optional) | Controller box | Include |

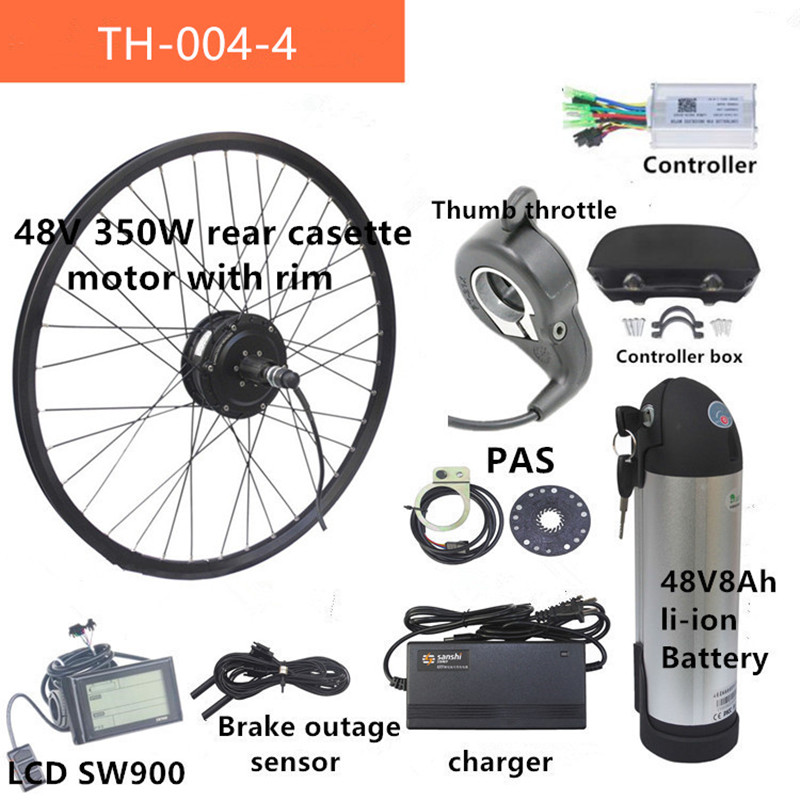

4. Model: TH-004-4(48V 350W rear casette motor with SW-900 LCD
displayer)
SPECIFICATION TH-004-4 |
| Motor | 48V 350W rear casette motor | Controller | 48V 14A |
| Motor axle length | 135 MM(bike rear fork length 135MM) | Battery | 48V 8Ah kettle battery |
| Throttle | Thumb throttle | Distance/charge | Around 30KM |
| Pedal assist | 15 magnet | Brake Machine | Brake outage sensor |
| Charger standard | EU/USA standard(optional) | Displayer | LCD SW 900 (big screen) |
5. Model: TH-004-5(48V 350W rear rotation motor without displayer)
SPECIFICATION FOR TH-004-5 |
| Motor | 48V 350W rear rotation motor | Controller | 48V 14A |
| Motor axle length | 135 MM(bike rear fork length 135MM) | Battery | 48V 12Ah kettle battery |
| Throttle | Thumb throttle with battery indicator | Distance/charge | Around 45-55KM |
| Pedal assist | 15 magnet | Brake Machine | Brake outage sensor |
| Charger standard | EU/USA standard(optional) | Controller box | Include |
6. Model: TH-004-6(48V 350W rear rotation motor with SW-900 LCD displayer)
SPECIFICATION FOR TH-004-6 |
| Motor | 48V 350W rear rotation motor | Controller | 48V 14A |
| Motor axle length | 135 MM(bike rear fork length 135MM) | Battery | 48V 12Ah kettle battery |
| Throttle | Thumb throttle | Distance/charge | Around 45-55KM |
| Pedal assist | 15 magnet | Brake Machine | Brake outage sensor |
| Charger standard | EU/USA standard(optional) | Displayer | LCD SW 900 (big screen) |

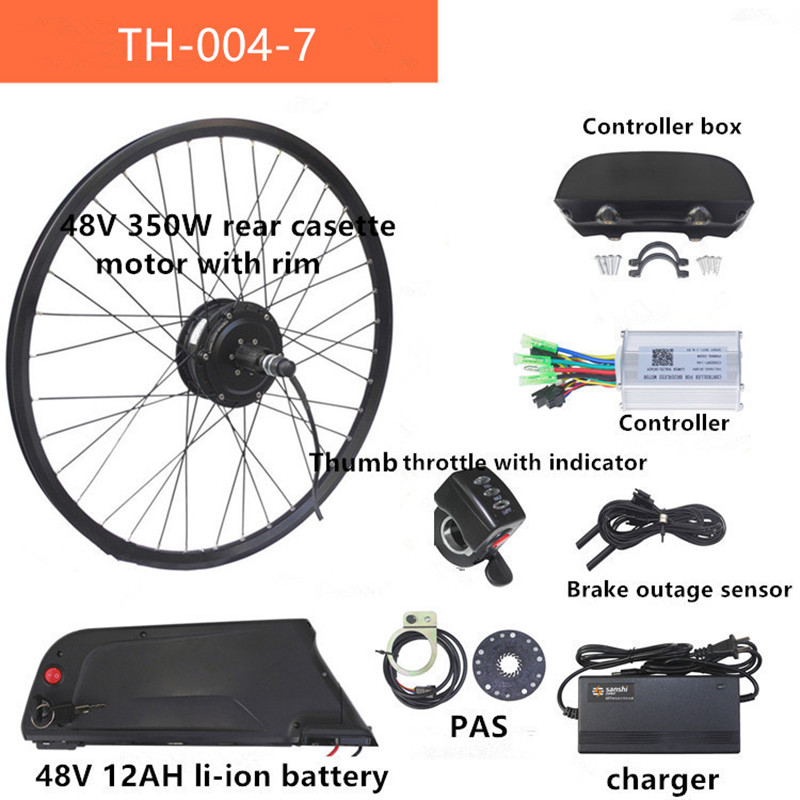

7. Model: TH-004-7(48V 350W rear casette motor without displayer)
SPECIFICATION FOR TH-004-7 |
| Motor | 48V 350W rear casette motor | Controller | 48V 14A |
| Motor axle length | 135 MM(bike rear fork length 135MM) | Battery | 48V 12Ah kettle battery |
| Throttle | Thumb throttle with battery indicator | Distance/charge | Around 45-55KM |
| Pedal assist | 15 magnet | Brake Machine | Brake outage sensor |
| Charger standard | EU/USA standard(optional) | Controller box | Include |
8. Model: TH-004-8(48V 350W rear casette motor with SW-900 LCD displayer)
SPECIFICATION FOR TH-004-8 |
| Motor | 48V 350W rear casette motor | Controller | 48V 14A |
| Motor axle length | 135 MM(bike rear fork length 135MM) | Battery | 48V 12Ah kettle battery |
| Throttle | Thumb throttle | Distance/charge | Around 45-55KM |
| Pedal assist | 15 magnet | Brake Machine | Brake outage sensor |
| Charger standard | EU/USA standard(optional) | Displayer | LCD SW900 (big screen) |
LCD SW 900
Motor

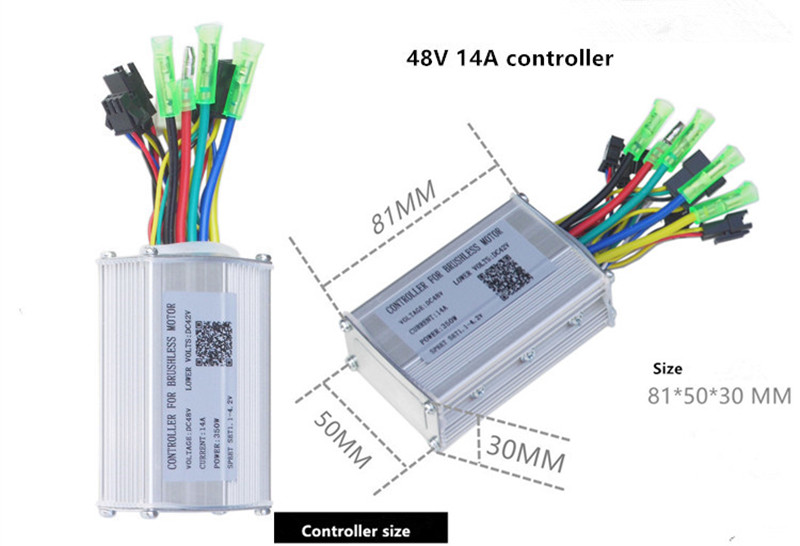

Controller

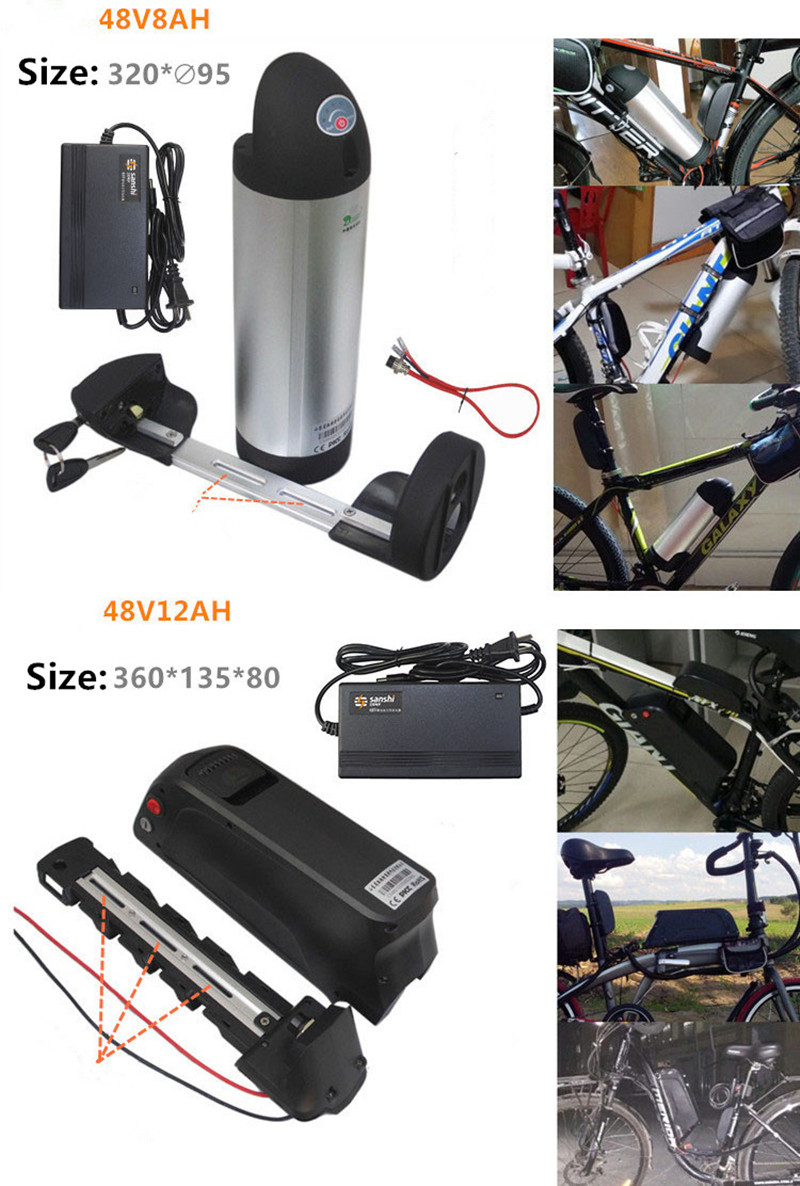

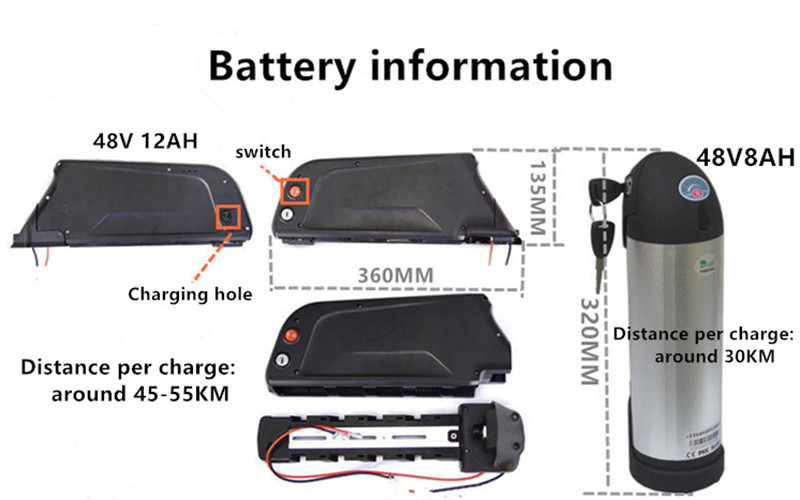

Battery
Brake&PAS&Notice
Sample of our kit install on customer's bike
